Center Enamel Glass Lined Liquid Storage Tanks Anti - Corrosion PH Range 1 - 14

Product Details
Place of Origin: CHINA
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W20180508003
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates;wooden pallets and wooden box
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin CHINA Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number W20180508003
Coating Color: Dark Green, Or Customizing Colors Coating Thickness: 0.25~0.40mm, Double Coating
Acid And Alkalinity Proof: Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 Adhesion: 3,450N/cm
Hardness: 6.0 Mohs Holiday Test: >1500V
Installation: By Jacking Machine Or Steel Pole, Fast In Installation Easy To Clean: Smooth, Glossy, Inert, Anti-adhesion
Permeability: Gas / Liquid Impermeable Foundation: Concrete Or Glass Fused Steel
High Light:

liquid fertilizer storage tanks

,

crude oil storage tank

Product Description

Glass-lined liquid storage tank, also called glass fused to a steel tank, combines the strength and flexibility of steel and the corrosion resistance of glass. After firing at 820°C-930°C high temperature, the molten glass reacts with the steel plate surface to form an inert and inorganic bond, which combines the strength and flexibility of steel and outstanding corrosion resistance of glass, so Glass-Fused-to-Steel tanks can provide many advantages over standard epoxy or weld painted storage tanks. Glass-Fused-to-Steel technology is the premium coating technology in the storage tanks market, and Glass-Fused-to-Steel tanks are widely used in bio-energy, municipal sewage, landfill leachate, and industrial wastewater treatment, etc. Applications.



All our glass-lined liquid storage tanks engineering design meet or exceed AWWA D103-09 and EN/ISO28765:2011, and our GFS tank engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone, etc., to make sure the tank structure's adequate security in long-term service life.



Glass Lined Liquid Storage Tanks Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds







Glass Lined Liquid Storage Tanks Manufacturer



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India, and South Africa, etc. The superior product quality and prompt service gain us worldwide recognition.

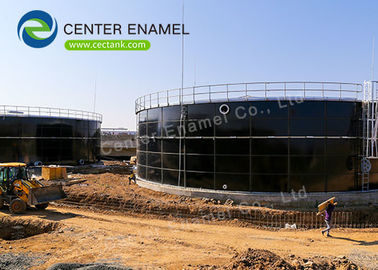

Glass Lined Liquid Storage Tanks References
