Place of Origin: | China |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
Model Number: | J2016012613 |
Minimum Order Quantity: | 1set |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
Delivery Time: | 0-60 days after deposit received |
Payment Terms: | L/C, T/T |
Supply Ability: | 60 sets per month |
Detail Information |
|||
Place of Origin | China | Brand Name | CEC TANKS |
---|---|---|---|
Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | J2016012613 |
Applications: | Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals | Standard: | AWWA D 103 , OSHA |
Warranty Period: | 2 Years Free Of Charge | Capacity: | Customized, 20 M3 To 18,000 M3 |
Lifespan: | Over 30 Years | Coating Thickness: | 0.25mm~0.40mm ,double Coating |
Coating Color: | Customized | High Light: | condensate storage tank,aluminium dome roof storage tanks |
Glass Lined Steel Leachate Storage Tanks With Aluminum Alloy Trough Deck Roofs
Glass Lined Steel Leachate Storage Tanks
Glass lined steel tanks are made of glass fused to steel panels, sealant and self locking bolts, as known as glass coated steel tank. The glass fused to steel panels combines the advantage of glass corrosion - resistance and steel hardness, in the firing oven with over 850 degrees Celsius. With its benefit of great anti - corrosion performance, the glass lined steel tanks are popularly used as leachate storage tanks.
Production Steps
Center Enamel possesses advanced enameling technology and more than 20 years experience. Steels show good chemical and physical performance because it contains titanium. Furthermore, the superfine glass foam like structure of the enameling layer, enable the materials’ excellent flexibility and durability.
1.CNC Laser Cutting
Inputting the Confirmed drawing into the computer, bolt holes and openings will be cut by CNC laser cutting machine automatically.
2.Steel Pre-treatment - Shot Blasting
Shot blasting according to SSPC SP10 standard, steel surface is in silver white color
3.Arch Bending
After shot blasting, steel panel needs to be arch bent to a radian according to tank diameter.
4.Automatic Enamel Spraying
Spray the glass coating on both sides of steel panels automatically. Coating thickness is controlled within 230 microns to 450 microns.
5.High Temperature Tunnel Oven
After enameling and drying, then firing steel panels in the oven at the temperatures ranging from 850℃ -940℃, which facilitates the interfacial fusion reactions that combine the two materials.
4.Product Inspection
Quality inspection needs to be conducted after production, including coating thickness, holiday test, color consistency.
Glass Lined Steel Leachate Storage Tanks Specifications
Coating color | dark blue, dark green , white, and customized |
A standard steel plate size | effective size 2400mm x 1200 m |
Steel plates thickness | 3mm - 12mm , depends on the diameter & height |
Coating thickness | 0.25mm - 0.4mm, two coating internal and external |
Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
Adhesion | 3,450N/cm |
Elastic | same as steel sheet , around 500KN/mm |
Hardness | 6.0 Mohs |
Service life | >30 years |
Spark test | >1500 V |
Permeability | gas and liquid impermeable |
Easy yo clean | smooth, glossy, inert, anti-adhesion |
Corrosion resistance |
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Glass Lined Steel Leachate Storage Tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including the USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

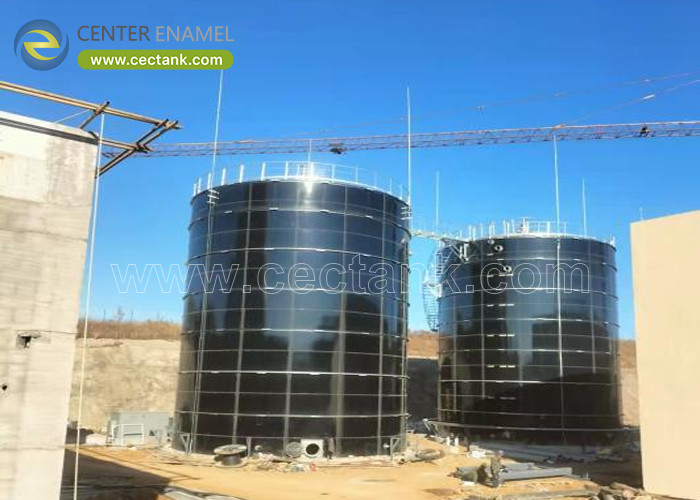

Glass Lined Steel Leachate Storage Tanks Projects
