AWWA Standard Leachate Storage Tanks With Aluminum Alloy Trough Deck Roofs
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden |
| Delivery Time: | 10-30 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W |
| Tank Body Color: | Dark Green / Can Be Customized | Corrosion Integrity: | Excellent |
| Steel Plates Thickness: | 3mm To 12mm , Depends On The Tank Structure | Chemical Resistance: | Excellent |
| Size Of Panel: | 2.4M * 1.2M | Easy To Clean: | Smooth, Glossy, Inert, Anti-adhesion |
| High Light: | condensate storage tank,aluminium dome roof storage tanks |
||
Product Description

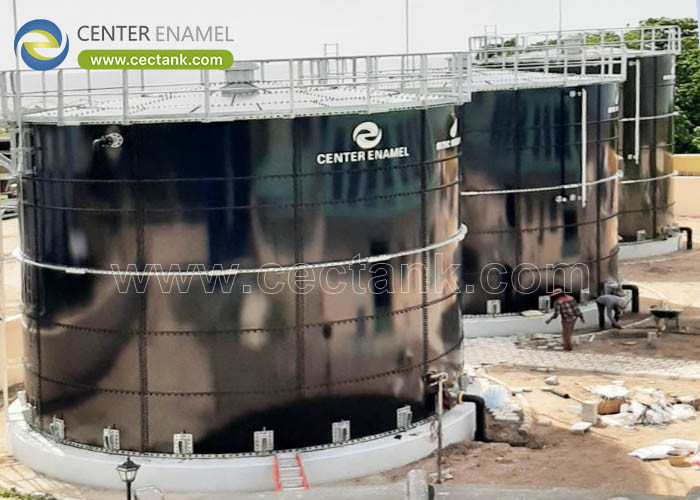

AWWA Standard Leachate Storage Tanks With Aluminum Alloy Trough Deck Roofs
Leachate Storage Tanks Introduction
Leachate Storage Tanks are designed to store leachate, which is the water is being extracted from the site. Leachate is highly corrosive depending on the variability of the composition, and need tanks and containers with excellent corrosion resistance to store it. The Leachate storage tanks are made of Glass-Fused-to-Steel which was fired at 820°C-930°C high temperature, the molten glass reacts with the steel plate surface to form an inert and inorganic bond. The leachate storage tanks combine the strength and flexibility of steel and outstanding corrosion resistance of glass and have the service of more than 30 years.
When the composition and toxicity of leachate vary from one landfill to another landfill, one can not be too careful when storing such a volatile substance. If not properly supervised or contained, leachate can seep through the water table and into the groundwater.
Leachate Storage Tanks Specification
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
Center Enamel Introduction
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61, API, and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India, and South Africa, etc. The superior product quality and prompt service gain us worldwide recognition.
Advantage and Specification of Center Enamel’s Leachate Storage Tanks
1. Short construction period
2. Superior corrosion resistance, service life is more than30 years
3. Low project cost
4. Tank volume can be easily expanded
5. Beautiful appearance, color can be customized
6. Not subject to weather conditions
7. No need big installation equipment
8. Easily expand, dismantle, move
