Place of Origin: | China |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
Model Number: | W |
Minimum Order Quantity: | 1set |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden |
Delivery Time: | 10-30 days after deposit received |
Payment Terms: | L/C, T/T |
Supply Ability: | 60 sets per month |
Detail Information |
|||
Place of Origin | China | Brand Name | CEC TANKS |
---|---|---|---|
Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W |
Feature: | Eco-friendly, Durability | Applications: | Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals |
Installation: | By Jacking Machine Or Steel Pole, Fast In Installation | Impact Resistance: | Excellent |
Adhesion: | 3,450N/cm | Hardness: | 6.0Mohs |
High Light: | liquid fertilizer storage tanks,crude oil storage tank |

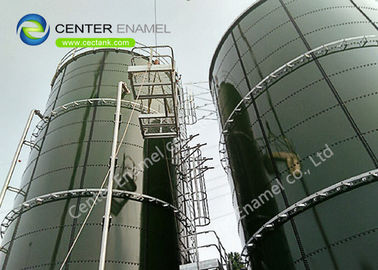

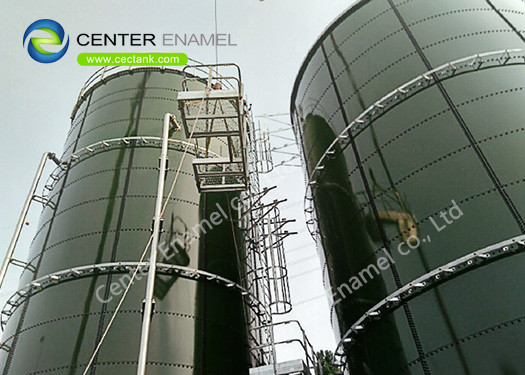

Food Grade Glass Lined Steel Potable water Tanks With NSF61 Certifications
Our glass-lined steel potable water tanks are food-grade, its engineering design meets or exceed to AWWA, FDA, LFGB, ISO and most international standards to ensure safe storage of potable water. Glass-lined steel potable water stored by our potable water tank is safe for human consumption. Our glass-lined steel potable water tanks range from a capacity of 20 steres up to 20,000 stores.
What is glass-lined steel?
Glass-Fused-to-Steel (Glass-Lined-Steel) is a unique tank finish. Two materials are fused together to achieve the best properties of both – the strength and flexibility of steel combined with the corrosion resistance of glass. Applied to both interior and exterior surfaces, Glass-Fused-to-Steel is able to provide many years of trouble-free service in harsh environments.
Glass Lined Steel Potable Water Tanks Specifications
Coating color | dark blue, dark green, white, and customized |
A standard steel plate size | effective size 2400mm x 1200 m |
Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
Adhesion | 3,450N/cm |
Elastic | same as steel sheet, around 500KN/mm |
Hardness | 6.0 Mohs |
Service life | >30 years |
Spark test | >1500 V |
Permeability | gas and liquid impermeable |
Easy yo clean | smooth, glossy, inert, anti-adhesion |
Corrosion resistance |
excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
Top-rated Glass Lined Steel Potable Water Tanks Manufacturer
Center Enamel designs, manufactures and installs potable water tanks for more tank 30 years, and the top-rated potable water tanks manufacturer in potable water and drinking water storage industry. Until 2018, Center Enamel potable water tanks have been exported to more than 45 countries including the USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Color Options For Glass Lined Steel Potable Water Tanks
Potable water tanks are available in a variety of colors, including light blue, light grey, dark green, tan, dark blue, forest green, white, cobalt blue
