Eco - Friendly Bolted Steel Sewage Storage Tank For Sewage Treatment Plant
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden |
| Delivery Time: | 10-30 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W |
| Coating Thickness: | 0.25mm~0.40mm , Two Layer Of Coating Internal And External | Steel Grade: | ART 310 |
| Size Of Panel: | 2.4M * 1.2M | Capactiy Available: | 20 M3 To 20,000 M3 |
| Easy To Clean: | Smooth, Glossy, Inert, Anti-adhesion | Easy To Cle: | Smooth, Glossy, Inert, Anti-adhesion |
| Warranty Period: | 2 Years Free Of Charge | FeatureEco-friendly: | Durability |
| Capactiy Availabl: | E20 M3 To 20,000 M3 | Impact: | ResistanceExcellent |
| Applications: | Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals | Defect Free: | Minimum Maintenance Needed |
| Installation: | By Jacking Machine Or Steel Pole, Fast In Installation | Corrosion Resistance: | Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds |
| High Light: | bolted steel water storage tanks,welded steel tanks |
||
Product Description

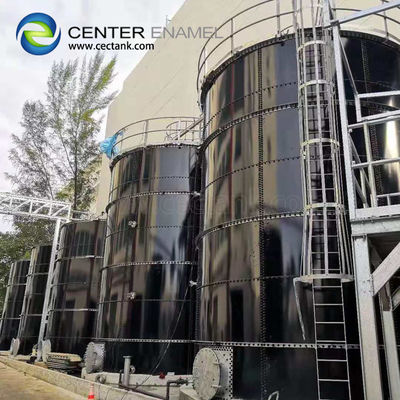

Bolted Steel Sewage Storage Tank for sewage treatment plant Application
Introduction of bolted steel sludge storage tank
The sludge and sewage storage tank we are offering is Glass Fused Steel Tanks. It is assembled by special steel plates, dedicated sealing sealant, self-locking bolts, etc. The tank deign service life is more than 30 years. After per-treatment - drilling and shot blasting, the both side of the special steel plates were coated with enamel coating, after firing in high temperature furnace ,it forms very strong adhesion strength between the coating and the steel plate. The protective coat can prevent corrosion, can withstand strong acid and alkali. It is superior in corrosion resistance.
Scope of application
In addition, to be used as sludge and sewage storage tank, it is widely used as such as
- drinking water tank/fire water tank /irrigation water tank
- wastewater treatment plant
- slurry and sewage treatment plant
- biogas digesters/reactors at biogas plant
Advantages of our sludge and sewage storage tanks
1. Short Construction Period: compare to over 90 days construction time of concrete tank, it takes even less than 15 days for installation of GFS Sludge Storage Tanks.
2. Superior Corrosion Resistance: Center Enamel Sludge Storage Tanks can resist PH range of 1 - 14.
3. Long Service Life: the Center Enamel GFS Tank are design to work in a long service life as more than 30 years.
4. Tank Volume can be easily expand: GFS Sludge Storage Tanks are not only easy to construct, but also convenient to expand, remove and rebuild.
5. Beautiful Appearance: the color of glass fused to steel tank could be customized as per client’s request based on Pantone Matching System.
Specification of GFS sludge storage tank
| Category | Specification |
| Coating Color | dark green, white, blue, color can be customized upon your request |
| Coating Thickness | 0.25MM - 0.40mm , double coating |
| Acid and alkalinity proof | Standard sheet PH: 3 - 11 |
| Special sheet PH: 1 - 14 | |
| Adhesion | 3450 N / cm |
| Elastic | Same as steel sheet, around 500 Kn / mm |
| Hardness | 6.0 ( Mohs ) |
| Service life | ≥ 30 Years |
| Holiday test | > 1500 V |
| Permeability | Gas / liquid impermeable |
| Easy to clean | Smooth, glossy, inert, non adhesive |
| Corrosion resistance |
Excellent. suitable for waste water treatment, sewage treatment, effluent treatment |
