Coated Bolted Steel Tank For Industrial Water / Flow Tank By Center Enamel With OSHA Standard
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20170907007 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 10-30 days after deposit received |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20170907007 |
| Steel Plates Thickness: | 3mm - 12mm , Depends On The Diameter & Height | Capactiy Available: | 20 M3 To 18,000 M3 |
| Size Of Panel: | 2.4M * 1.2M | Steel Grade: | ART 310 |
| Tank Material: | Glass Fused To Steel | Tank Body Color: | Dark Green / Can Be Customized |
| High Light: | commercial water storage tanks,municipal water storage tanks |
||
Product Description

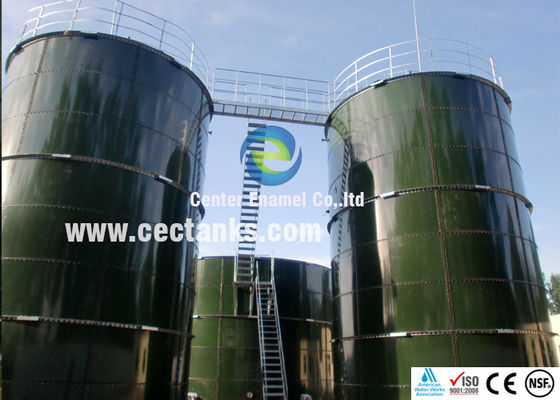

Coated Bolted Steel Tank for Industrial Water / flow tank by Center Enamel with OSHA Standard
What is Coated bolted Steel Tank for Industrial Water?
Glass-Fused-to-Steel (GFS), also known as Glass-Lined-Steel (GLS), enamel tanks, coated bolted steel tank, these names all means the same thing. Is two materials - Enamel frit and raw steel are fused together after two coating and two heat treatment at 800-900℃ to achieve the best cohesion blending of the strength and flexibility of steel combined with the corrosion resistance of glass. Applied to both interior and exterior surfaces, Glass-Fused-to-Steel is able to provide many years of trouble free service in harsh environments.
Specification:
| Category | Specification |
| Coating Color | Dark green, or Customizing colors |
| Coating Thickness | 0.25~0.40mm, double coating |
| Acid and alkalinity proof | Standard pH: 3~11, Special pH: 1~14 |
| Adhesion | 3,450N/cm |
| Elastic | Same as steel sheet, around 500kN/mm |
| Hardness | 6.0 Mohs |
| Service life | ≥30 Years |
| Holiday test | >1500V |
| Permeability | Gas liquid impermeable |
| Easy to clean | Smooth, glossy inert, anti-adhesion |
| Corrosion resistance | Excellent suitable for waste water, salt water, sea water, high suifur crude oil, salt fox, organic and inorganic compounds |
| Modular bolted tank construction | Rapid and cost effective site installation, reducing project timescales, costs and requirement for on site equipment |
| Flexibility to re-model | Tanks can be extended, dismantled and re-sited giving long term asset value |
| Maintenance | Safe and secure storage, with minimal maintenance costs |
Application including:
Fertilizer Edible Oils
Polymers Insecticides
Specialty Polymers Detergents
Fuel Oils Asphalt
Lubricants Mining Fluids and Slurry
Processing Spill-Over Basins
Resins Paints and Primers
Food Additives Dyes and Pigments
Glycols De-Icer
Pulp and Paper Lime and Carbonate Slurry
Who we are?
Center Enamel Co., Ltd was established in 1989, is the pioneer and the largest manufacturer of glass fused to steel tanks in China. CEC are the premier industrial water tank manufacturers and suppliers in China. Don't take shortcuts, CEC engineers have the skill and expertise to ensure your industrial water tank is the best quality.
CEC Advantages:
- Professional R&D Team:
- 1*Technical Consultant
National technical expert; Senior engineer; over 50 years enameling R&D experience
- 23*Advanced Technician
Postgraduate educational background; expert in enamel R&D over 10 years
- Advanced Production Line
- Raw material - enamel frit manufacturer
- CNC cutting machine for steel place
- Automatic enamel line for spray
- Quality Control
- Raw Material Test: Raw material ingredient analysis, raw material impurity test and etc.
- Enamel Sample Test: Enamel fluidity test, color difference analysis, firing test, acid and alkali resistance test, adherence test
- Destructive Test: Impact test,holiday test, slice microscope analysis
- Numbering for each steel plate for tracking
Project reference
Project location: China
